BIOPHARMA CASE
Biopharma Cases
01

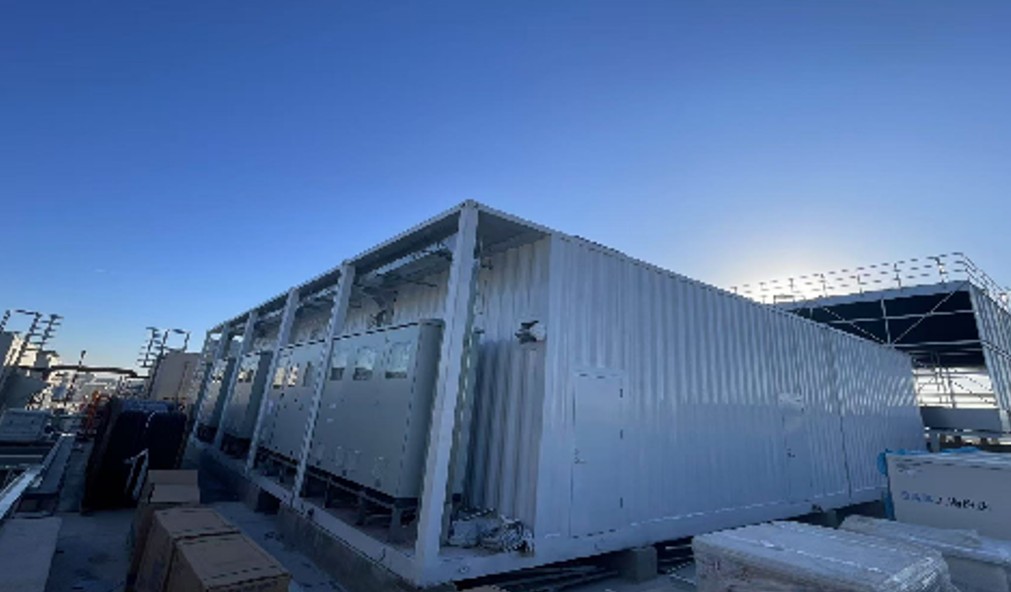

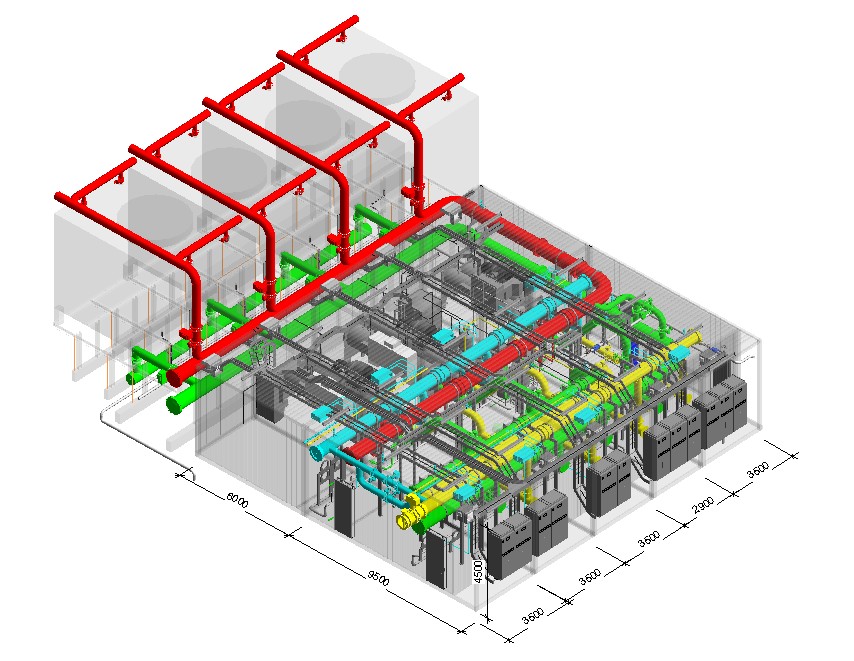

Beijing Biopharma — Integrated Cooling Station Project
Location Beijing
Project Scale 10 Combined Containers (2 Water Treatment + 8 Cooling)
Equipped with 4 chiller units totaling 3,600RT capacity, including 1×1000RT fixed-speed centrifugal chiller, 2×1000RT variable-speed centrifugal chillers, and 1×600RT variable-speed centrifugal chiller, with supporting chilled water pumps, cooling water pumps, cooling towers, and piping accessory systems.
02

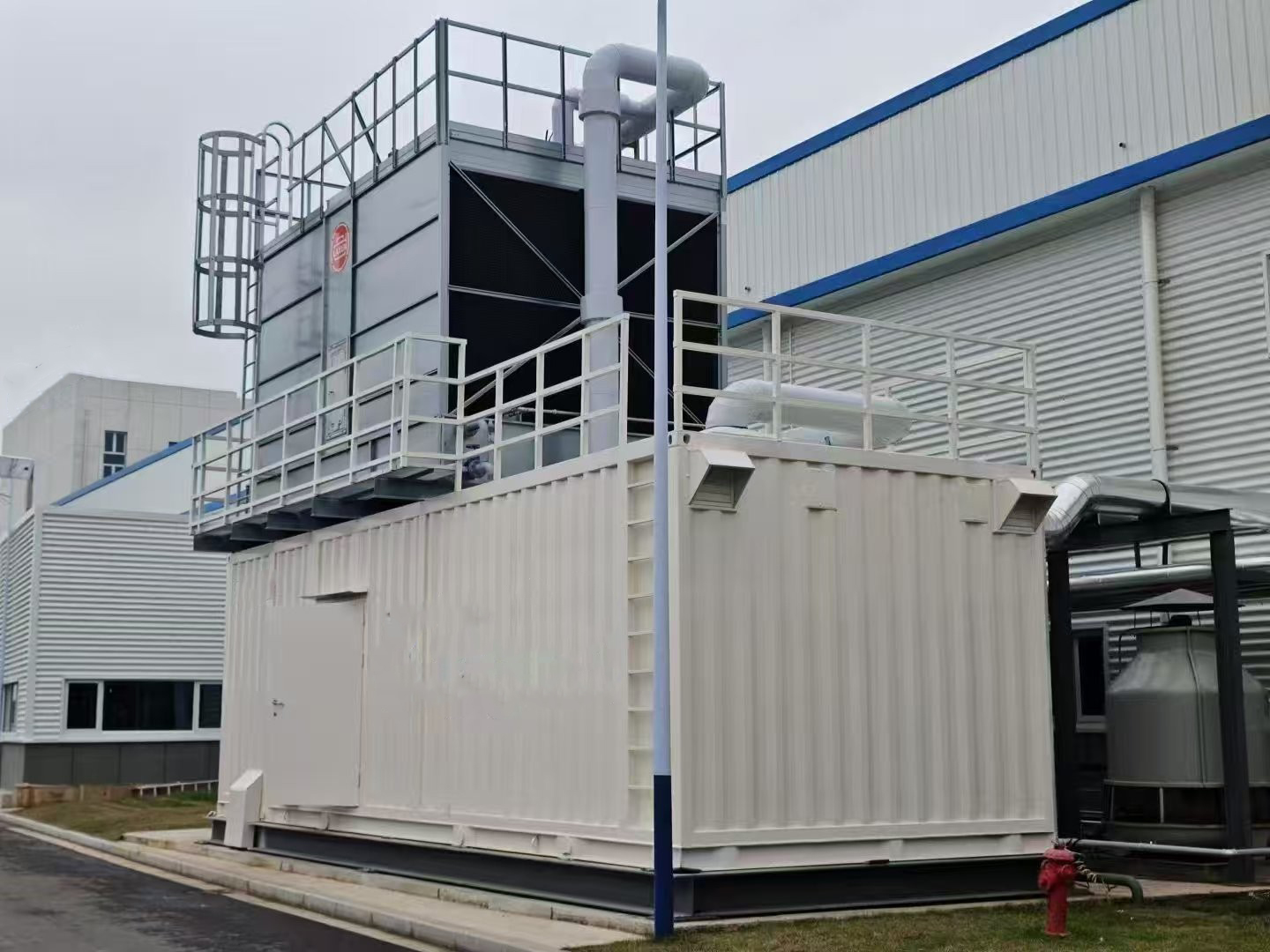

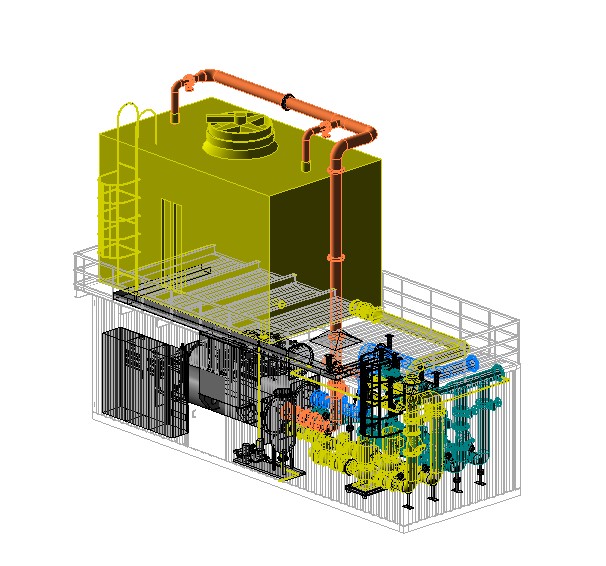

Yangzhou Mingde — Integrated Chiller Unit Project
Location Yangzhou
Dimensions 10700×3500×3300mm
Quantity 2 Sets
The system comprises 1×355RT chiller, 1×422RT chiller, 4 chilled water pumps, 4 cooling water pumps, 2 pressurization units, energy-saving control cabinets, and associated piping and valves.
